Habitat Suitability Model Viewer
About
This project is part of EDITO-INFRA (Grant agreement ID: 101101473): - T7.3: End-to-end demonstrator for aquaculture and maritime industry
Author: Willem Boone | contact: willem.boone@vliz.be

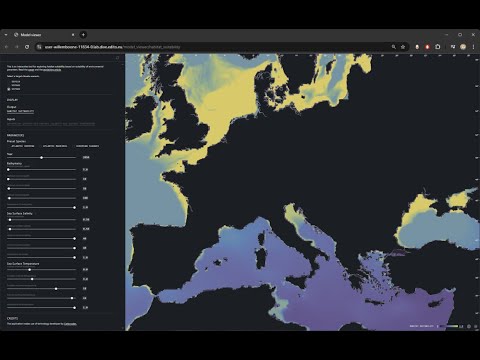

Demo video
Goal
Summary of Demonstrator
The demonstrator use case (DUC) consists of a smartviewer that hosts a model to predict habitat suitability based on environmental living conditions. The smartviewer is based on Carbonplan its seaweed-farming-web/GitHub - seaweed-farming-web.
In this demonstrator, habitat suitability is calculated using a deterministic model that uses minimum and maximum thresholds on the environmental variables. The environmental parameters that are used are:
- Sea surface temperature
- Sea surface salinity
- Bathymetry
The thresholds for all variables can be adopted using slider widgets. On any changing parameter, the suitability map is updated and rendered in the viewer. Using a time slider, environmental parameters for several future climate scenarios can be accessed and converted in suitability maps. This work is available on on GitHub - Editomodelviewer.
Data formatting
The environmental variable dataset used by the smartviewer, need to be provided in a specific format. To create this dataset, different sources and storage from Edito data lake are used. Two pipelines were required: - Downscaling large .zarr datasets to lower resolution. E.g. the bathymetry dataset is around 20GB, which is to large for the demonstrator purpose. - Creating pyramids in which each level has increasing resolution (for optimal zooming/rendering).
This work is available on this GitHub - Editoresamplingdatasts
Building the site
Assuming you already have Node.js installed, you can install the build dependencies as:
shell
npm install .
To start a development version of the site, simply run:
shell
npm run dev
Visit application in a browser:
http://localhost:5002/model_viewer/habitat_suitability
Simulating Habitat Suitability
The habitat suitability model that is deployed in this viewer is based on the work from Rutendo Musimwa.
Single suitability score
Parameters
Each environmental variable has 5 settings (sliders in the app) that can be adjusted to user choices / species characteristics. - Critical minimum: Below this threshold the species cannot survive. - Optimal minimum: Optimal living conditions above this threshold. - Optimal maximum Optimal living conditions below this threshold. - Critiall maximum: Above this threshold the species cannot survive. - Weight: the fifth parameter indicatest the importance of the variable in the total score (~the weight).
Score
| Environmental variable | Situation | Suitability score | |------- |----- |------------ | | . < critical minimum | The species cannot survive | 0 | | critical minimum < . < optimal minimum | Not optimal but the species can survive | value between 0-1 (linear) | | optimal minimum < . < optimal maximum | Optimal living conditions | 1 | | optimal maximum < . < critical maximum | Not optimal but the species can survive | value between 1-0 (linear) | | critical maximum < . | The species cannot survive | 0 |
Visual this looks likes this:
Habitat suitability
Habitat suitability is calculated as the weighted average of suitability per environmental variable. Each environmental variable has: - A weight (Wi) representing its importance. - A suitability score (Si) indicating how suitable that variable is.
Index ( i ) represent each environmental variable in the habitat suitability model. <!-- In case the Latex is not rendering fine, this is a description of the formula To calculate the habitat suitability: - Multiply each environmental variable's weight by its corresponding suitability score. (Wi * Si) - Add these values together to get the numerator. (SUM(Wi * Si)) - Sum up all the weights to get the denominator. (SUM(Wi)) - Divide the numerator by the denominator to calculate the habitat suitability. (SUM(Wi * Si) / SUM(Wi))
Notice: GitHub might not support LaTeX. Open the markdown in an .md reader or IDE for proper rendering.
-->
```math \text{Habitat suitability} = \frac{\sum{i=1}^{n} \left( Wi \cdot Si \right)}{\sum{i=1}^{n} W_i}
\
\text{with:}
\begin{align} Wi & \text{ is the weight for environmental variable } i,\ Si & \text{ is the suitability score for environmental variable } i,\ n & \text{ is the number of } i \text{ environmental variables ranging: }[1:n]. \end{align} ```
Presets
The simulation is preconfigured for 3 species which can be selected using checkboxes.
TO DO: add reference for preset values (paper from Rutendo Musimwa in review).
Simulating the future
For future predictions, 3 Shared Socioeconomic Pathways can be selected. Using the time slider, the situation in 2010, 2050 and 2090 can be simulated. In these future simulations, sea surface salinity & sea surface temperature are subject to change, while bathymetry is considered static.
| SSP | Scenario | |------- |----------------- | | SSP119 | Very low GHG emissions:CO2 emissions cut to net zero around 2050. | | SSP245 | Intermediate GHG emissions: CO2 emissions around current levels until 2050, then falling but not reaching net zero by 2100. | | SSP585 | Very high GHG emissions: CO2 emissions triple by 2075. |
Credits
The application makes use of technology developed by Carbonplan: App | GitHub.
