NIMPHS

Numerous Instruments to Manipulate and Post-process Hydraulic Simulations.

Short description

Import OpenFOAM (.foam) and TELEMAC (.slf) files in Blender, and make use of its powerful 3D renderers to generate images and animations!

Documentation

Installation guide and documentation can be found here: NIMPHS documentation

Features overview

OpenFOAM

• Preview the imported file in the viewport
• Create sequences to render animations
  • Mesh sequence (generates a mesh for each time point in the selected time range)
  • Streaming sequence (generates a mesh when the frame changes and only keeps one mesh in memory)
• Import point data as vertex colors (color attributes)
• Clip mesh by a scalar

Screenshots

Wireframe preview | Material preview :------------------------------------:|:-----------------------------------: |

TELEMAC

• Works with 2D and 3D files
• Preview the imported file in the viewport
• Create sequences to render animations
  • Mesh sequence (generates a mesh for each time point in the selected time range)
  • Streaming sequence (generates a mesh when the frame changes and only keeps one mesh in memory)
• Import point data as vertex colors (color attributes)
• Linearly interpolate mesh and vertex colors (for both type of sequences) to render smoother animations
• Extract point data from one vertex as time series
• Generate volumes from TELEMAC-3D simulations

Screenshots

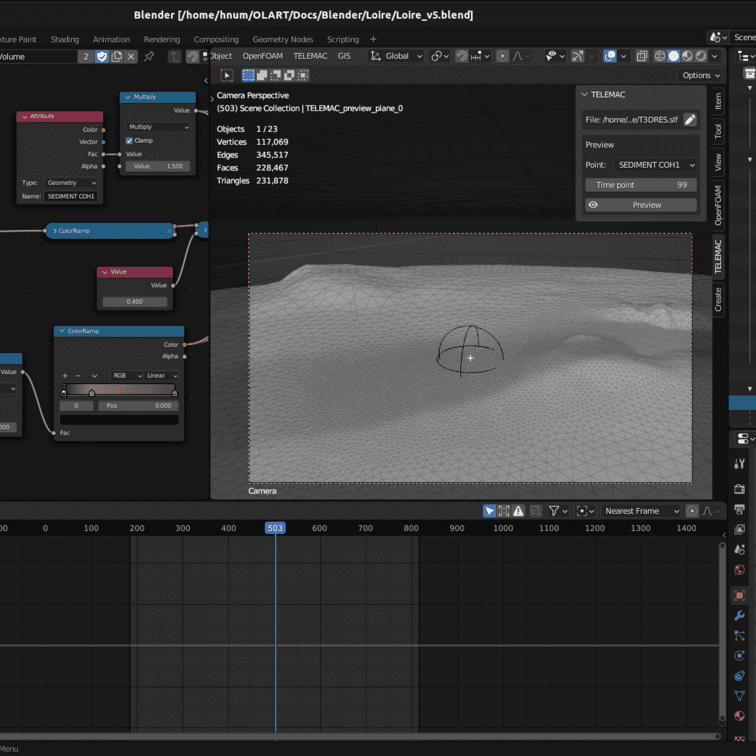

Wireframe preview | Material preview :------------------------------------:|:-----------------------------------: |

Gallery

Here are some creations made with NIMPHS.

OpenFOAM

Model A | Model B :---------------------------------------------------:|:---------------------------------------------------: |

Model C | Model D :---------------------------------------------------:|:------------------------------: |

TELEMAC

Model A | Model B :---------------------------------------------------:|:---------------------------------------------------: |

Contributing

We welcome contributions and hope that our contributing guide will help you to start easily.Make sure to read the code of conduct before contributing.

Citing NIMPHS

There is a paper about NIMPHS!

If you are using NIMPHS in your research, please cite our work.

Olart et al., (2023). NIMPHS: Numerous Instruments to Manipulate and Post-process Hydraulic Simulations. Journal of Open Source Software, 8(83), 4868, https://doi.org/10.21105/joss.04868

Bibtex

@article{Olart2023, doi = {10.21105/joss.04868}, url = {https://doi.org/10.21105/joss.04868}, year = {2023}, publisher = {The Open Journal}, volume = {8}, number = {83}, pages = {4868}, author = {Félix Olart and Thibault Oudart and Olivier Bertrand and Mehdi-Pierre Daou}, title = {NIMPHS: Numerous Instruments to Manipulate and Post-process Hydraulic Simulations}, journal = {Journal of Open Source Software} }
