Images_Alignment
Images_Alignment is an application dedicated to ease the images alignment using affine transformation matrices calculated either from the pyStackReg or SIFT algorithm, a combined approach, or from a user driven approach (specifying manually the matching points).
Once the parameters have been set, they can be automatically applied to a set of images as part of a workflow.

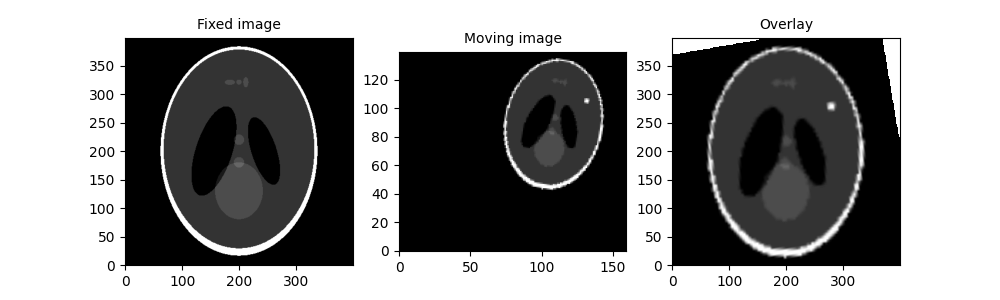

View of the GUI

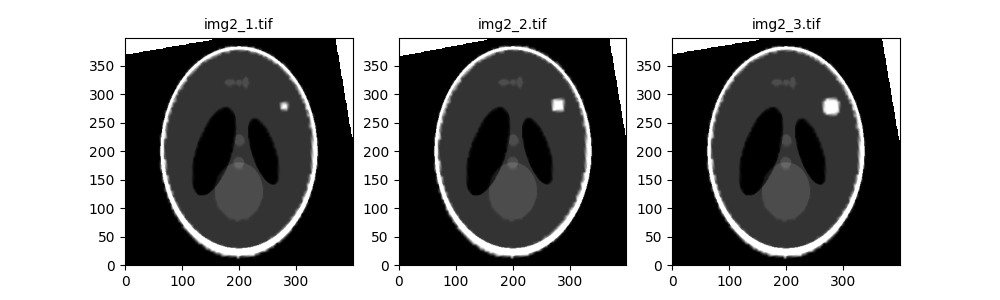

Application to a set of 3 images.
(The figures above have been generated from example.py available here.)
Installation and Usage
Assuming you have a python environment which is activated in a terminal, the application can be installed with the pip command:
bash
pip install git+https://github.com/CEA-MetroCarac/images_alignment.git
Once installed, the application can be launched directly from a terminal (with the previous python environment activated), by:
bash
images_alignment
For more information concerning the usage and the parameters settings, see the documentation.
Acknowledgements
This work, carried out on the CEA-PFNC (Platform for Nanocharacterisation), was supported by the “Recherche Technologique de Base” program of the French National Research Agency (ANR).
Authors information
In case you use this application to align images for a study which leads to an article, please cite:
Quéméré, P. (2024). Images_alignment : A python package to ease images alignment with a dedicated GUI (2024.1). Zenodo. https://doi.org/10.5281/zenodo.14338698
P. Thevenaz, U. E. Ruttimann and M. Unser, "A pyramid approach to subpixel registration based on intensity," in IEEE Transactions on Image Processing, vol. 7, no. 1, pp. 27-41, Jan. 1998, doi: 10.1109/83.650848.
