ThereminQ - CLassiQ

Orchestrating Qrack derivatives on OpenCL and CUDA

ThereminQ orchestrates a suite of best-of-class tools designed to control, extend and visualize data emanating to and from Quantum circuits using Qrack, Tipsy and Jupyter on CUDA and OpenCL accelerators.

• Qrack - Qbit OpenCL Hardware Emulation Stack

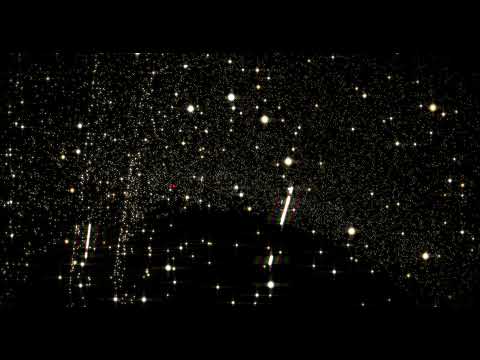

• Bonsai - Stellar data visualizer for QFT, Sycamore, TNN_d and SDRP validation
• Qimcifa - Quantum-inspired Monte Carlo integer factoring algorithm

Look also at the following Python enabled images - VDI with a collection of QC Jupiter notebooks - Factoring with Shors' and Qimcifa

Other tags contain - QUDA - cuQuantum with QSVM

bash docker run --gpus all \ --privileged \ -p 6080:6080 \ --device=/dev/dri:/dev/dri \ -d twobombs/thereminq[:tag]

Images can be run independant but are also made to work with the vQbit infrastructure K8s HELM repo

Installation setup and usage scenarios can be glanced at here

Build on deploy-nvidia-docker and CUDA-CLuster

• WebVNC, CUDA 12+ & OpenCL 1.2+ with NV, AMD & Intel HW support

Initial vnc password is 00000000 - noVNC website is avaliable at port 6080 - xRDP running at port 3389 to vnc 127.0.0.1:5900

Docker: deploy an instance of ThereminQ's WebUI controller container

bash docker run --gpus all \ --privileged \ -p 6080:6080 \ --device=/dev/dri:/dev/dri \ --mount type=bind,source=/var/log/qrack,target=/var/log/qrack \ -d twobombs/thereminq:controller bash docker run -ti \ --mount type=bind,source=/var/log/qrack,target=/var/log/qrack \ twobombs/thereminq bash /root/run-supreme-cpu bash docker run --gpus all \ --device=/dev/dri:/dev/dri \ -ti \ --mount type=bind,source=/var/log/qrack,target=/var/log/qrack twobombs/thereminq bash /root/run-cosmos-gpu1

• use --gpus all for NVidia-Docker hosts, in addition --privileged and --device=/dev/dri:/dev/dri will expose all GPUs in the system, eg: AMD/Intel iGPUs



All specialized workloads are listed here

Experimental bqp=bpp stabilizer_t_nn 30+ qbit workloads

bash docker run --gpus all \ --device=/dev/dri:/dev/dri \ -ti \ --mount type=bind,source=/var/log/qrack,target=/var/log/qrack twobombs/thereminq bash /root/run-tnn-gpu1

Quantum Inspired Qimcifa high qbit workloads - Qrackmin

bash docker run --gpus all \ --device=/dev/dri:/dev/dri \ -d twobombs/thereminq:qimcifa

Tips for Managing high-Qubit and/or high-Node statevector workloads

• Workloads with full entanglement and/or Quantum simulations that are at or exceed 30+ Qubits
• Mixed workloads based on longer/larger/deeper circuits with partial entanglement that exceed 36+ Qubits



To prevent these workload from taking up all resources of the system it is good to take the following measures

• System memory should be at least the amount of RAM where the statevector will fit into
• From 30 qubits ( eg: QFT ) count 8GB RAM Memory (and 4 cores with POCL) doubling every additional qubit
• Start an instance with a limit for memory and/or swap. eg docker: -m 16g --memory-swap 32g
• Disable OOM killers in the kernel and/or the container orchestrator ( --oom-kill-disable )
• OOM host change: add vm.overcommit_memory = 1 and vm.oom-kill = 0 in /etc/sysctl.conf
• Swap should be a dedicated and fast drive where possible NVMe RAID, random IO equal to the bandwith of the GPU/PCIe



Sycamore, QFT & T_NN(-d) Results on an AMD Threadripper 1920X@4.2Ghz

• 24 Threads with 32GB RAM, 2.5TB NVMe Swap on a 11x RAID NVME drive - Tesla K80 24GB - Tesla M40 24GB results

• M40 + K80 run script

If you want to reproduce these results here are some gists to help you along

• Install Guide
• Recommendations
• Runtime

Note: it is wise to run the benchmarks program inside a main memory limited container with outflow to fast swap so that the system remains stable at intensive runs and high memory peaks - with fast swap we mean FAST NVME RAID0 swap

To run ThereminQ as a VirtualCL controller

note: create the underlying directory structure as mentioned in the VCL readme of Qrackmin

eg: ```bash docker run \ --gpus all \ --device=/dev/dri:/dev/dri \ -d \ --mount type=bind,source=/var/log/vcl,target=/var/log/vcl \ --mount type=bind,source=/var/log/qrack,target=/var/log/qrack twobombs/thereminq:vcl-controller

```

Questions / Remarks / Ideas / Experiences - In Discord

Code from the following companies and initiatives are in this container

All rights and kudos belong to their respective owners.
If (your) code resides in this container image and you don't want that please let me know.

Code of conduct : Contributor Covenant
