Watch the video demonstration here.

Transaction Histroy of bridging ETH from L1 chain to Rollup here.

Generel Deposit Flow

Overview

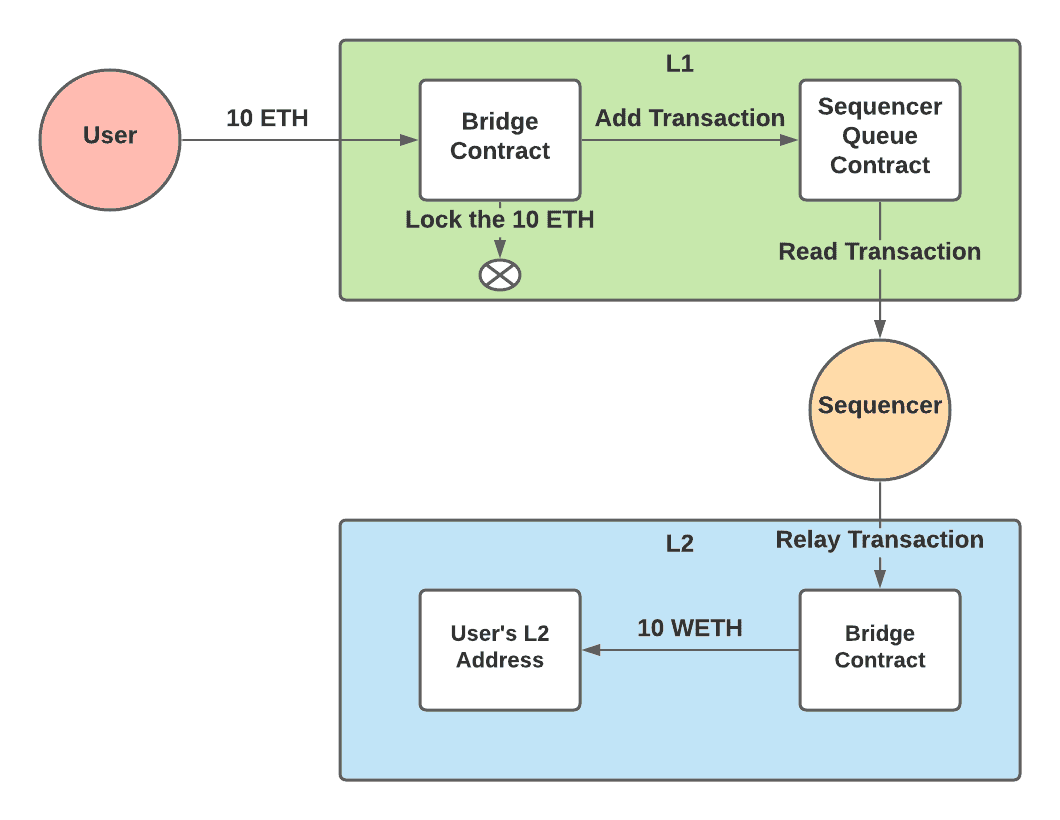

The deposit flow depicted in the diagram orchestrates the deposit process within the system. This README elucidates the key components and their interactions involved in the deposit journey.

Components and Functions

• StandardBridges: These pivotal components initialize and conclude the deposit process, facilitating the essential Lock & Mint function crucial for asset movement between L1 and L2.

• L1CrossDomainMessenger: Upon initiation, intercepts transactions and directs them towards the OptimismPortal contract, where the depositTransaction function is invoked.

• OptimismPortal: Handles the deposit transaction process and triggers the TransactionDeposited event upon completion.

• Op-node Component: Monitors L1 transaction data, parsing and relaying details to the Op-geth execution engine. Op-geth executes the deposit transaction in L2 upon detection of interaction within OptimismPortal.

• L2CrossDomainMessenger: Receives parsed information from Op-node and calls the relayMessage function, facilitating the transfer of assets to the L2 user via the L2StandardBridge.

Custom Deposit Flow

Overview of Part 2

This part aims to enable users on Ethereum to distribute rewards in the form of ETH to users on a Rollup network. The process involves modifying the bridge contract and the sequencer to facilitate the distribution of rewards from Ethereum to Rollup users.

Approach

To achieve the task of enabling reward distribution on the Rollup network, the following approach was implemented:

1. Modify OptimisticPortal.sol:

   • Added a function to the bridge contract that allows users to specify a list of addresses and corresponding reward amounts to be distributed.
   • Implemented the functionality to store the ETH rewards on the bridge and emit an event (MultipleTransactionDeposited) upon successful distribution.

2. Update Sequencer (sequencer.go):

   • Implemented a function (DistributeReward) in the sequencer to catch the MultipleTransactionDeposited event emitted by OptimisticPortal.sol.

Problem Faced

Part 1:

1. Memory Space Efficiency:

   • Due to limited space in the root hard drive, I needed to prioritize memory space efficiency.

2. Installing direnv Package:

   • Initially, I encountered difficulties installing the direnv package. However, I overcame this obstacle by practicing Linux commands and referring to the official documentation on direnv.

3. Time Efficiency in Deployment:

   • Deploying the L1 contracts essential for the chain's functionality required time efficiency. During peak times, the estimated amount of ETH required for Deployment was notably higher, approximately $10k if executed on the mainnet.

4. Optimistic Rollup Documentation:

   • The official documentation of Optimistic Rollup lacked clarity regarding running op-geth, op-node, batchr, proposer concurrently.

Part 2:

1. Finding Specific Documentation:

   • I encountered challenges in locating specific documentation required to complete Part 2. To address this, I utilized OpenAI and Gemini AI to better understand the concepts involved.

2. Experimented Standard Deposit Flow strategy:

   • Experimented with a strategy that proved to be costlier on the mainnet. This involved following standard Deposit Flow approach of transferring tokens from L1StandardBridge to L2StandardBridge and implementing a function (intiatingETHtoken()) that iterated n times on a custom function to bridge tokens.

3. Configuration for Custom Deposit Flow:

   • I wasn't able to determine whether I needed to implement a mechanism to capture events emitted on sequencer.go or from Deposits.go
