Augmented Reality with Aruco Markers in Python

A Python project that brings augmented reality to life by overlaying 3D objects on Aruco markers using OpenCV and OpenGL.

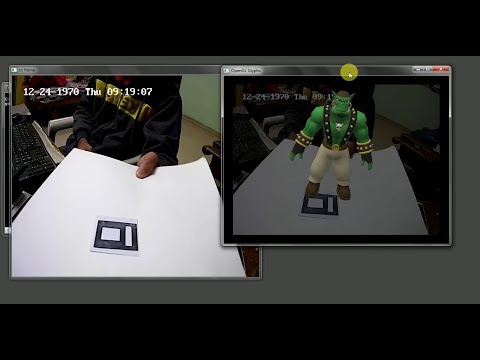

Demo

YouTube Demo

Requirements

  • Python 3.x
  • OpenCV 3.x (opencv_contrib required for Aruco support)
  • imutils
  • PyYAML
  • pygame
  • PyOpenGL

Install Python packages via pip:

bash pip install imutils pyyaml pygame PyOpenGL

Developed and tested on Anaconda 4 (Python 3.x, Windows 10), but should work on most platforms.

Project Structure

  • main.py: Main code. Loads the 3D object, initializes your camera, detects Aruco markers, and overlays the 3D object.
  • objloader.py: Utility for loading OBJ files (see PyGame Wiki).
  • .obj and .mtl files: Your 3D model (exported from Blender or other 3D software). Both are required for proper rendering.

Getting Started

  1. Camera Calibration
  • Calibrate your camera first. Use scripts in the calibration directory (see details below).

  • This generates a .yaml file for your camera matrix.

    1. Prepare Your Files

  • Place your camera_matrix.yaml, .obj, and .mtl files in the project’s main directory.

    1. Run the Demo

bash python main.py

Calibration

You can calibrate using either a chessboard or an Aruco board.

Aruco Board Calibration

  • Edit calibration/main.py:

    • Set your video source (camera index or file).
    • Set output YAML filename.

  • Run and follow the instructions.

  • When done, copy the generated YAML to the main directory.

Chessboard Calibration

  • Edit calibration/aruco.py:

    • Set your video source and output YAML filename.

  • Run the script.

  • Move or rename the generated YAML file to match the main directory config.

Using Your Own 3D Objects

  • Download .obj models with matching .mtl files (e.g., from Free3D).
  • Replace the .obj and .mtl files in your main directory.
  • Without an .mtl file, objects will render black.
  • You can create/edit models in Blender or other 3D tools.

Troubleshooting & Tips

  • OpenGL window lighting may be dimmer than OpenCV—work in a well-lit room.
  • All required files (main.py, objloader.py, model files, camera_matrix.yaml) must be in the same folder.
  • Report bugs or issues by opening an issue or reaching out.

License & Attribution

  • 3D models included are not owned by me. See the license/readme in models/ or zip/sinband/ for details.
